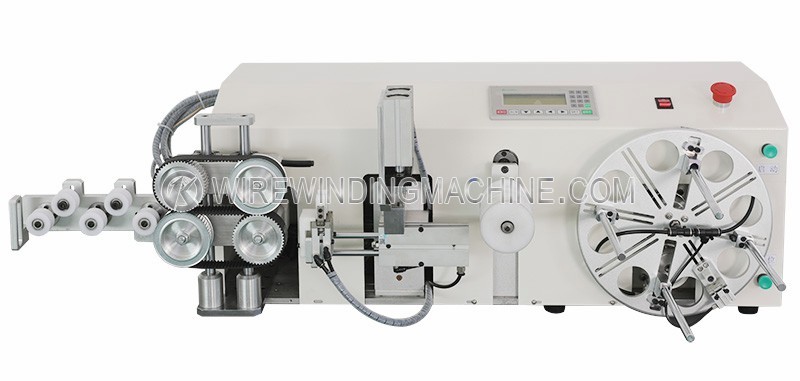

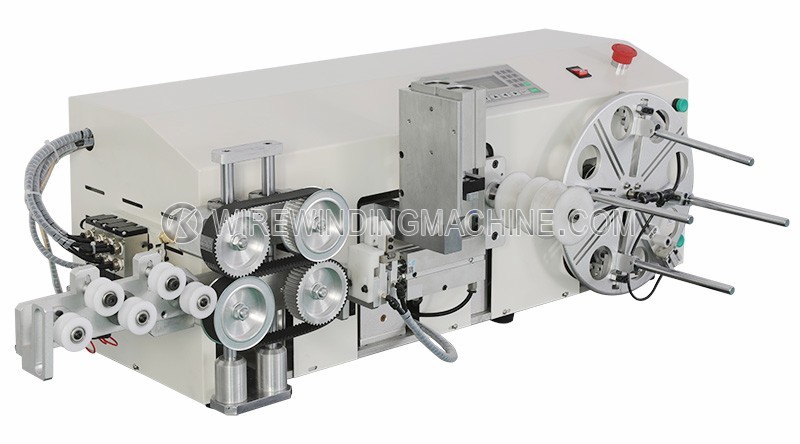

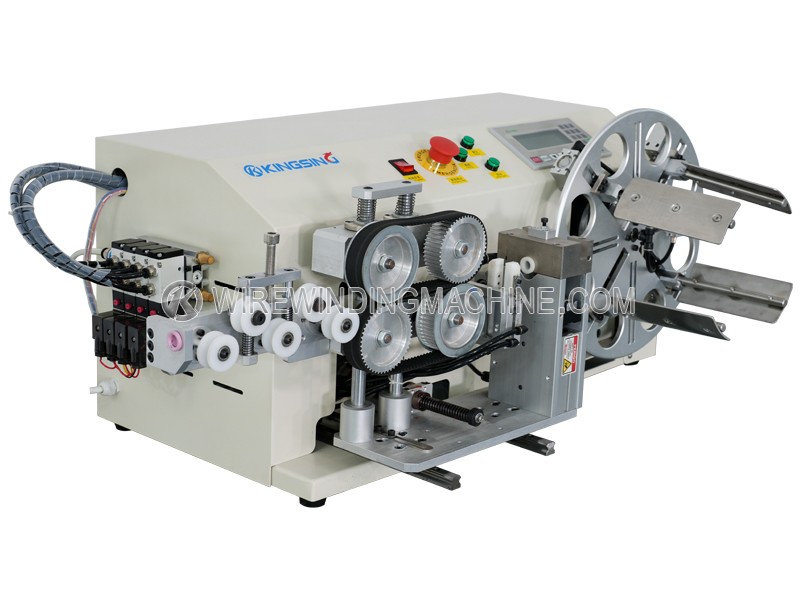

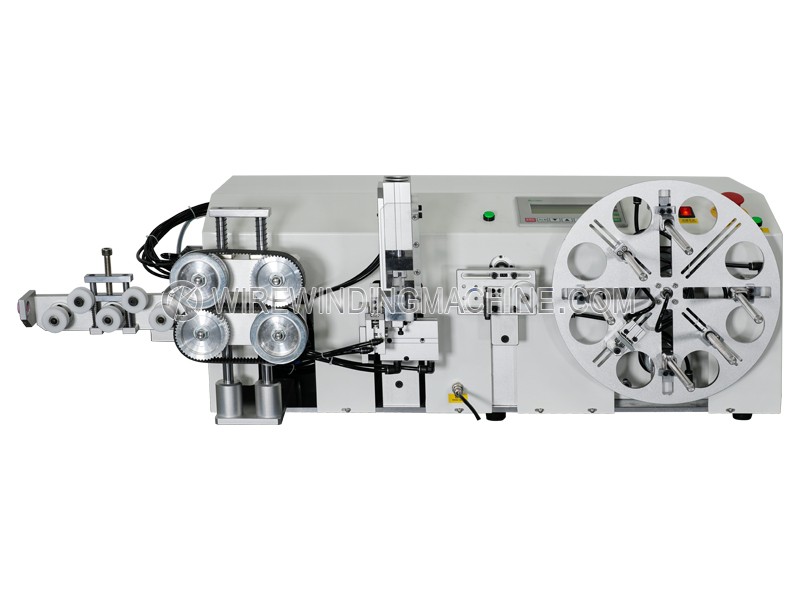

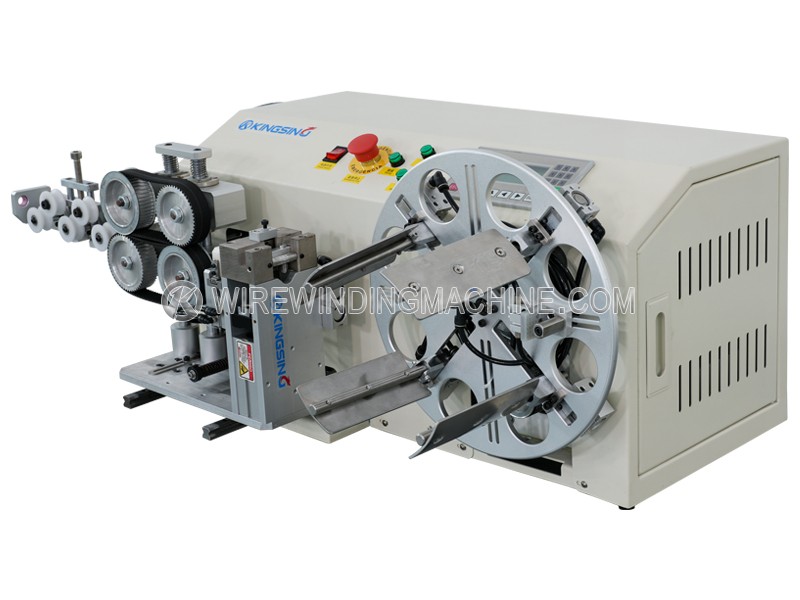

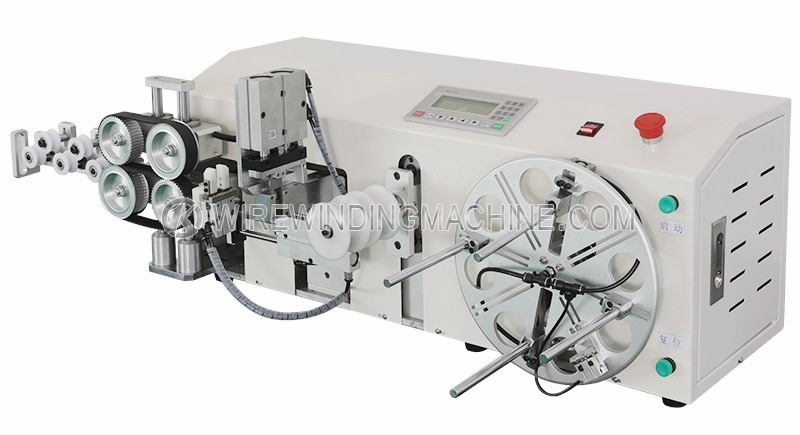

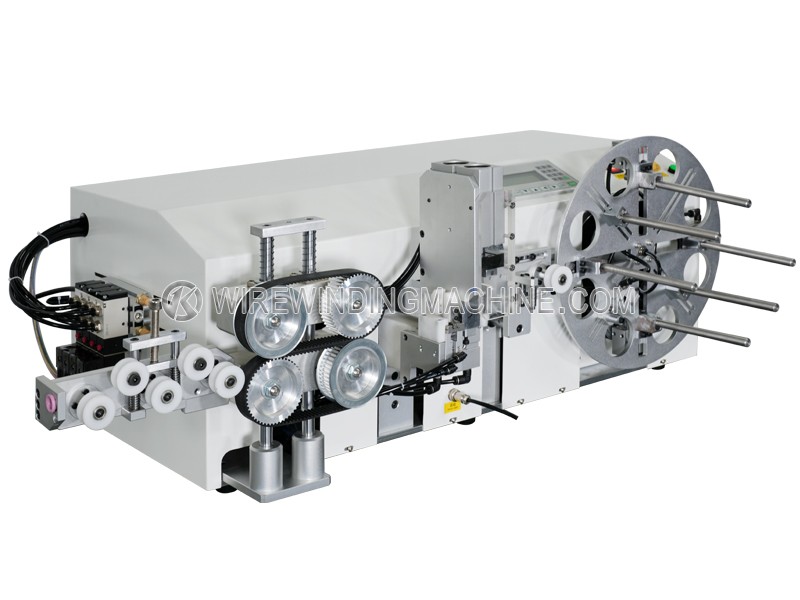

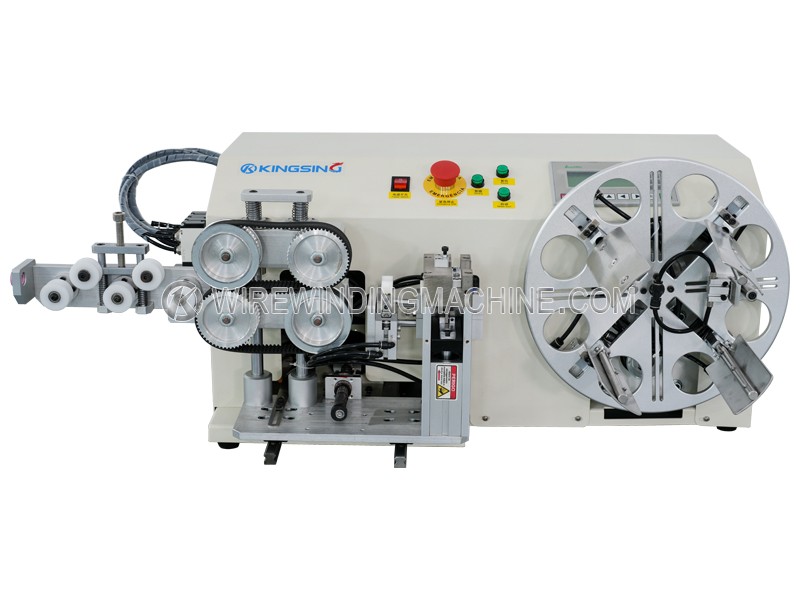

These wire cutting and winding machine is suitable for round wire, flat/ribbon wire, 2 pin double wire, etc. It will process the wire according to the parameters you set on the LCD touch screen, the whole producer is fast and stable. The cutting length and wire binding cycle are both easy to adjust, the previous setting parameters will be saved automatically. All of its wearing parts are designed very durable and artful, it released manual work and improved working speed as well as processing stability.
Download: (1)
| Model | KS-C01 | KS-C02 | KS-C03 | KS-C04 |
| Winding Cycle | 1 ~ 999 cycle | |||
| Winding Speed | 1 ~ 4 cycle / S | |||
| Available Wire Size | ф2-7mm or ф6-10mm | |||
| Winding Inner Diameter | adjustable from 80 to 250mm | adjustable from 60 to 190mm | ||
| Winding Outer Diameter | Max. 300mm | Max. 260mm | ||
| Available Wire Width | 10 ~ 70mm | |||
| Suitable Wire Shape | round wire, flat/ribbon wire, 2 pin double wire, etc. | |||
| Binding Diameter | - | - | 5 ~ 28mm / 15 ~ 40mm | |
| Suitable Cable Tie Length | - | - | 75 ~ 135mm / 120 ~180mm | |
| Cable Tie Twisting Cycle | - | - | 2 ~ 8 cycle | |
| Dimension | 1100 x 1150 x 430mm | 1400 x 1150 x 430mm | ||
| Net Weight | 60Kg | 75Kg | ||
| Power Supply | AC220V 50Hz/ 110V 60Hz | |||
| Power Rating | <1000W | |||
| Wire Order | unordered | ordered | unordered | ordered |
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
