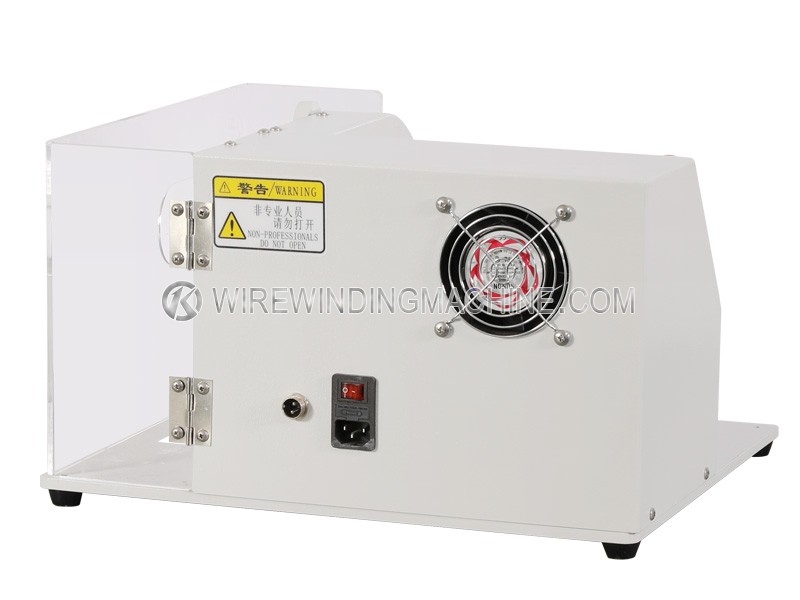

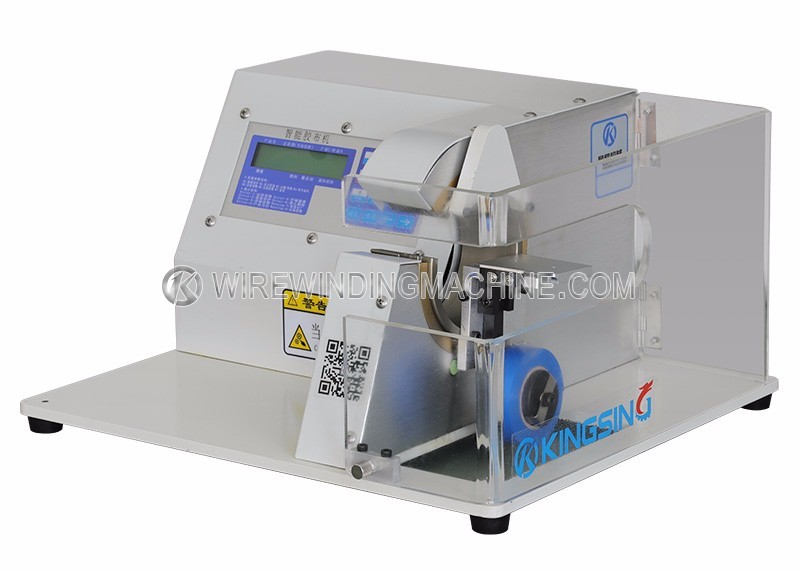

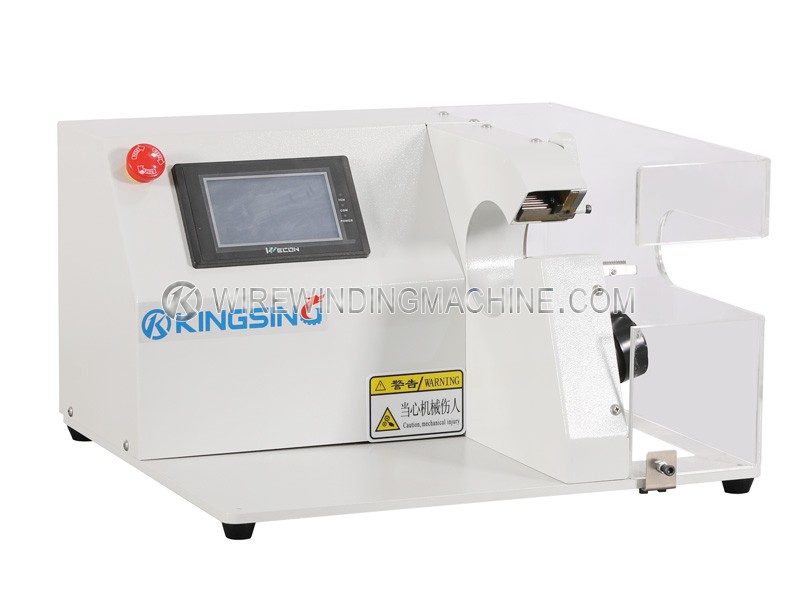

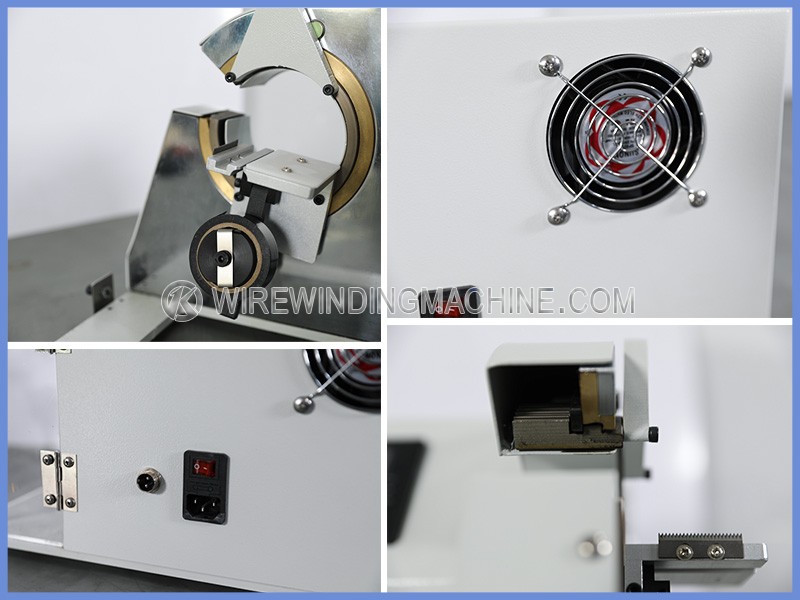

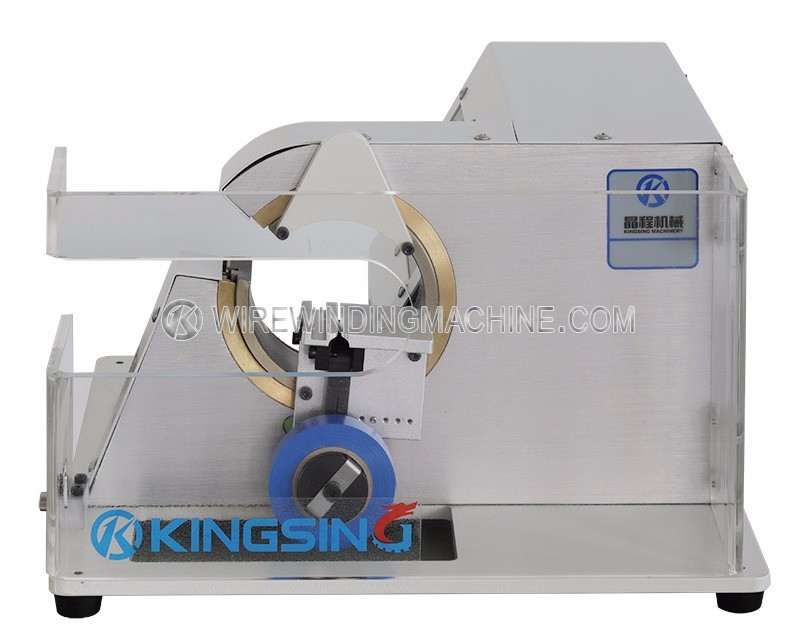

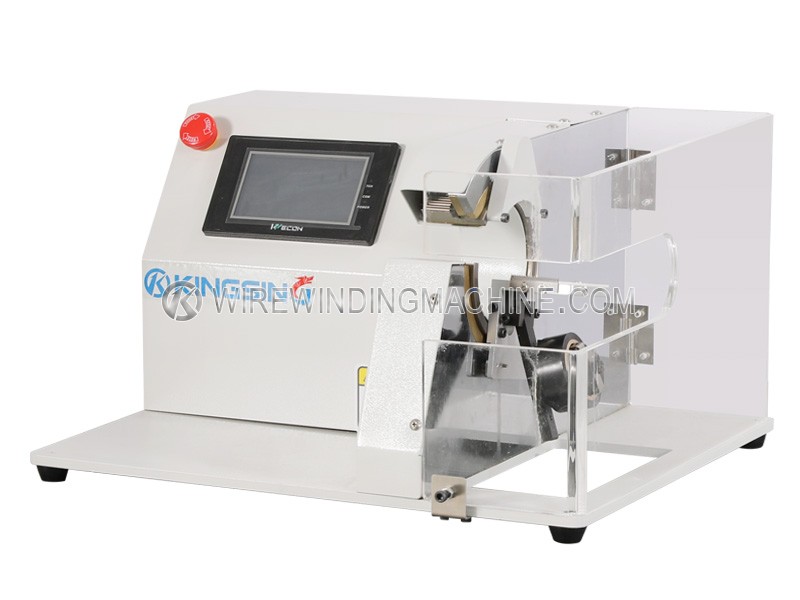

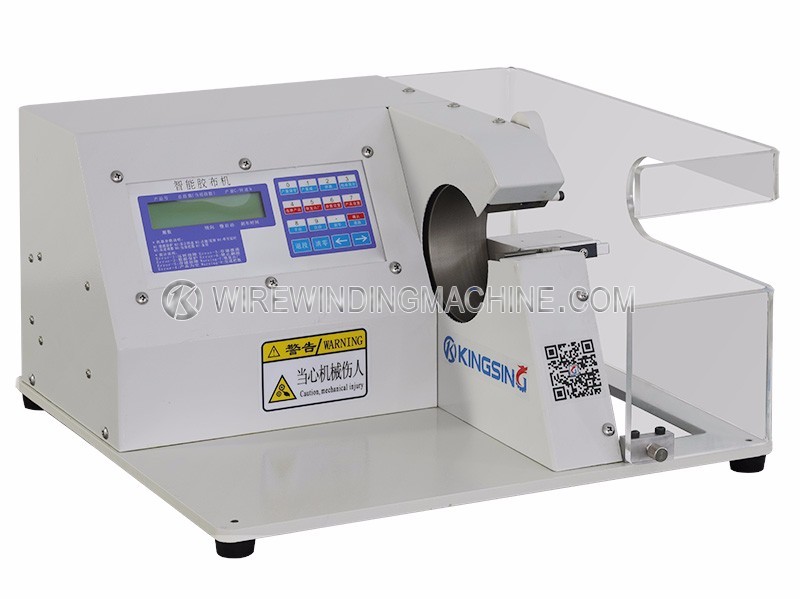

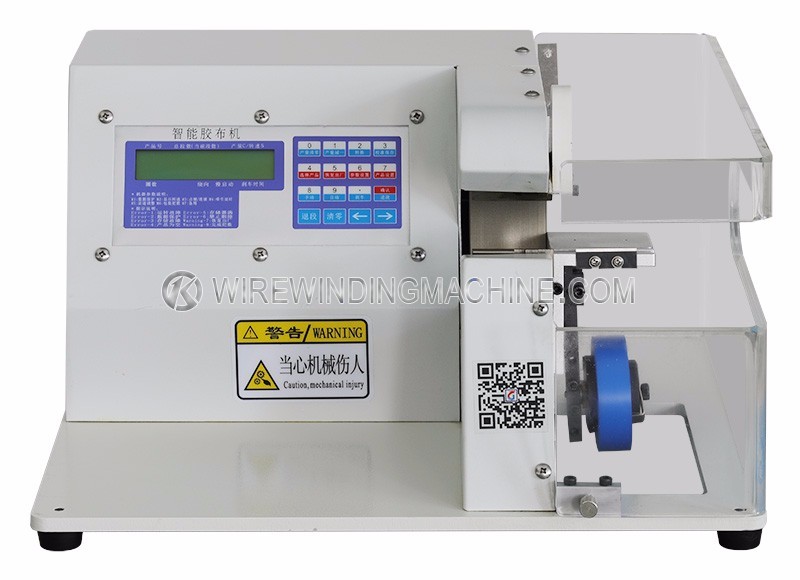

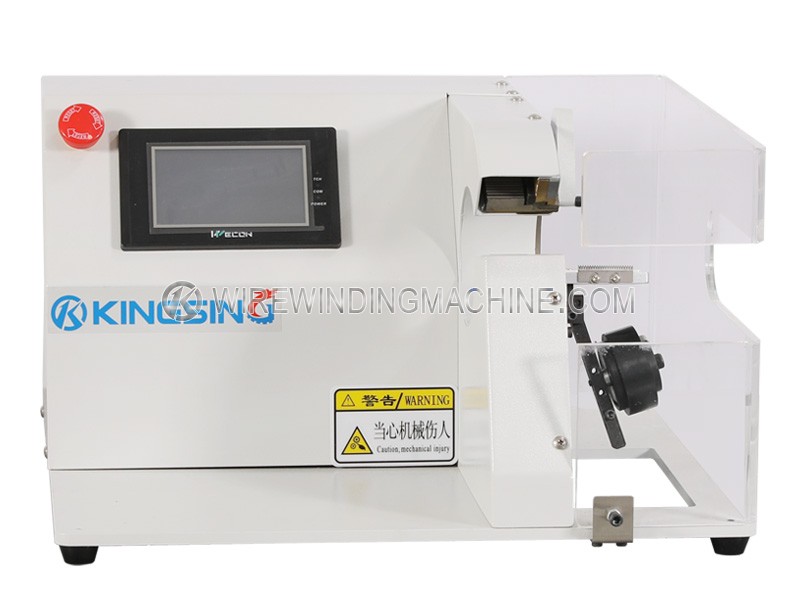

Wire Harness Taping Machine

  • Model：KS-A2031
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

This model is suitable for wire harness taping, working speed is adjustable, tapingcycles can be set. Apply to different kinds of non-insulation tape material,such as duct tape, PVC tape, etc. Winding effect is smooth and no fold. Makesure the tape on each lap winding with a circle of overlapping 1/2 covered.Easy to switch between different winding modes. This machine can realizedifferent taping method, for example, same position with point winding, anddifferent positions with straight spiral winding. The machine also has a counterwhich can record the working quantity. It can replace manual work and improvetaping performance.

Download: (1) (2)

Model

KS-A2031

Available Wire Diameter

Φ1mm-Φ25mm

Winding Mode

Spiral winding

Speed of Main Motor

200-1400r/min(adjustable)

Applied tape

PVC, Vinyl, Cloth, Felt, Tape and so on.

Tape Outer Diameter

Max. 110mm

Tape Width

9-30mm

Tape Inner Diameter

Φ38mm

Operating Type

Touching Screen

Power Supply

220V/50Hz   110V/60Hz

Net Weight

27Kg

Dimension

430×380×260mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
